Recent Advances in Climate Change Research: Part XI – How Earth’s IR Photons are Transferred in the Atmosphere in the Presence of CO₂

At quite uncertain times and places,
The atoms left their heavenly path,
And by fortuitous embraces,
Engendered all that being hath.
And though they seem to cling together,
And form ‘associations’ here,
Yet, soon or late, they burst their tether,
And through the depths of space career.
— James Clerk Maxwell (1831-1879), From ‘Molecular Evolution’, Nature, 8, 1873.

The absorption spectra of greenhouse gases and the physics of radiative transfer in the Earth’s atmosphere are a key to understanding changing climate. For Earth’s greenhouse effect, the CO₂ molecule’s absorption of radiation (photons) close to 667 cm^-1 (15 μm) is of particular interest since those wavenumbers are near the peak radiation wavelength for Earth’s temperature and thus important for terrestrial radiative transfer in the atmosphere. If infrared (IR) absorption took place only at 667 cm^-1 it would have negligible climatic effect. But collisions between CO₂ molecules and other molecules remove or add energy during radiative transitions and this process, called pressure or collisional broadening, allows absorption and emission to take place over a broader range of photon energies. Therefore, pressure broadening is a key source of IR opacity in the troposphere.

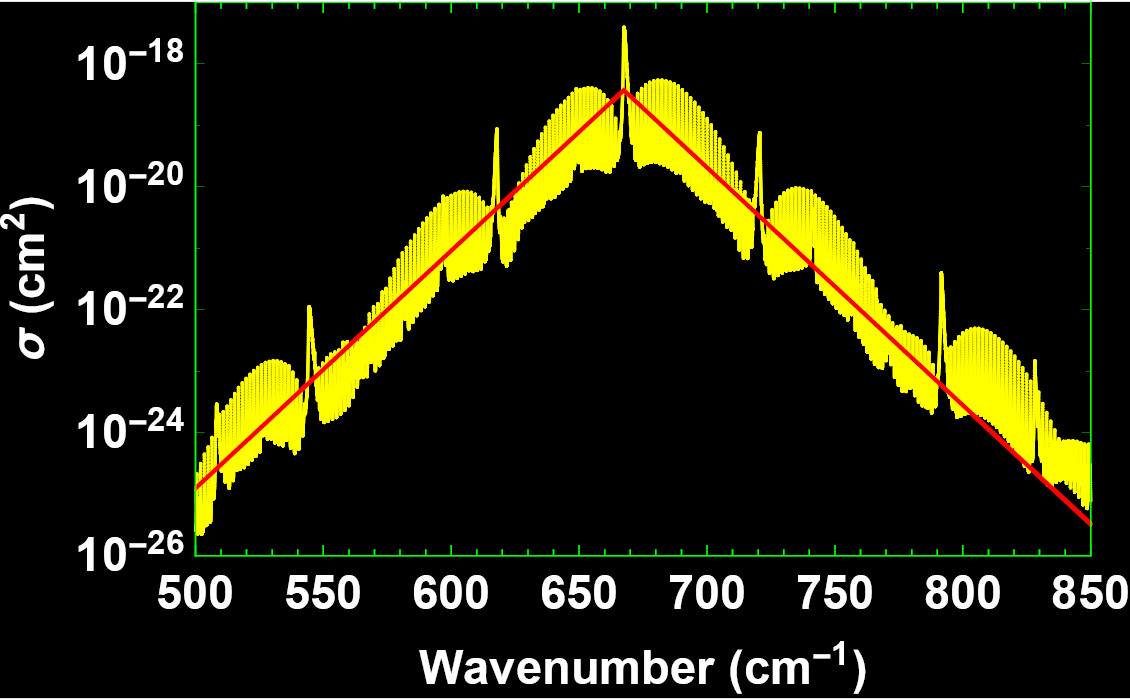

In fact, the CO₂ absorption spectrum shows thousands of separate lines between 500 and 850 cm^-1 (Figure 2). The CO₂ absorption cross-section denoted by σ is a measure for the probability of absorption, or the ability of a CO₂ molecule to absorb a photon of a particular wavenumber. The density or number n of absorbing CO₂ molecules per unit volume must also affect the probability of absorption.

Absorption Coefficient

The absorption coefficient is the product of CO₂ density and CO₂ cross-section, α_ν = nσ_ν. A simple way to calculate α_ν follows. The yellow line in the absorption cross-section (Figure 2) seen by the IR photon can be simplified by the red line given by σ_ν = σ₀ exp(-r|ν-ν₀|), where σ₀ = 3.71·10^-19 cm², r = 0.089 cm and ν₀ = 667.5 cm^-1, close to an approximation suggested by Wilson and Gea-Banacloche (2012). We assume the absorption spectrum is independent of height. This is an approximation, since the broadening and the strength of the spectral lines depend on both pressure and temperature.

We also need a formula for how n changes with altitude; we use the ‘exponential atmosphere’ n(z) = n₀ exp(-z/L) with ‘scale height’ of L = RT₀/ mg ≈ 8,000m. Here R = 8.31447 J/(mol K) is ideal gas constant, m = 0.0289654 kg/mol is the molar mass of dry air and g = 9.80665 m/s² is Earth-surface gravitational acceleration. We have used the temperature T₀ = 273K. The exponential atmosphere takes the simplifying assumption that T is constant with altitude (T varies by only 20% below 80 km so this is acceptable). For every rise in altitude L, the air density and pressure drop by a factor e = 2.7; thus, L provides a convenient measure of atmospheric thickness.

CO₂ is heavier than air, but is well-mixed throughout the atmosphere, so that its density can be taken to decay with the same characteristic constant as air itself, 2.5470·10¹⁹ molecules/cm³. Then, n₀ is the number density of CO₂ molecules near the surface of the Earth. When the concentration is given in ppm as [C], it becomes n(z = 0) = n₀ = 2.5470[C]·10¹³ molecules/cm³.

Transfer for Spectral Radiance

We now have an approximation for the absorption coefficient in the troposphere due to the presence of CO₂. To find how Earth’s IR radiation is transferred upwards (ignoring convection), we need an equation of transfer which recognises an atmosphere that is simultaneously absorbing and emitting. We invoke the plane-parallel approximation, where pressure, temperature and composition are assumed to be functions of height only. Suppose that, between z and z + dz, the absorption coefficient is α_ν at wavenumber ν. The emission coefficient is equal to the absorption coefficient as a result of Kirchhoff’s law (see Part VI – More on the Simple Greenhouse Model). In this interval, suppose that the spectral radiance, often called intensity, increases from I_ν to I_ν + dI_ν along a path s at an angle θ to the vertical; geometry gives ds = dz/μ; μ = cosθ (Figure 3). The radiance on its way upwards (+) will be reduced by absorption and increased by emission described by a source function J_v . Thus, it has the differential form:

Losses and gains in intensity must obey the second law of thermodynamics: for any term that introduces a loss there must be a term that introduces a gain. The formal solution to this equation for radiative transfer in the upward direction is:

where I_ν ⁺(0), being a boundary condition, is the upwards radiation rate at the surface of the Earth, which we take to be equal to Earth’s blackbody radiation:

with T(0) = 288K, the average surface temperature. Further, Q_v is the function which transfers intensity upwards from height z to height Z where we imagine an observer is looking down on our planet:

where:

The physics of the source function is crucial for radiative transfer. We assume that the atmosphere is in local thermodynamic equilibrium. The emission of energy from a volume element can then be specified in terms of the Planck spectral energy distribution and the radiative absorption coefficient, regardless of the spectrum of the flux passing through the element. Thus, the source function acts according to Planck’s radiation formula:

which tells the power radiated per unit area, per unit solid angle of emission, per unit wavenumber by the surface of a blackbody at temperature T. To proceed with the source function, we need to specify how the average equilibrium temperature changes with height, taking as a guide the ‘International Standard Atmosphere’, which has a temperature lapse rate of 6.49 K/km from sea level to 11 km (the tropopause) so that T(z) = T(0)-6.49K·z/1,000m.

The first term of the solution in equation (1b) is simply the exponential attenuation of the emission from height 0 to Z. The second term is the sum of the emissions from each level z along the path from 0 to Z, each emission exponentially attenuated by the path length from z to the observer at Z.

Upwards Transfer with Absorption

Let’s investigate the first term of the solution, I_ν⁺(Z) = I_ν⁺(0) Q_ν(Z,0), which transfers Earth’s blackbody radiation to height Z without including the effect of emission. Let μ = 1. Of course, keeping only the first term is unphysical; if the Earth were allowed to continuously send IR energy upwards into the atmosphere without any emission from the atmosphere, CO₂ photon absorption would make the air get increasingly hot. But this kind of analysis provides some learnings.

In the exponential atmosphere where its composition is assumed to be function of height only, the transfer function becomes Q_ν(Z,0)≈exp(-Z/l_ν), where the approximation holds when Z<<L. In physics, l_v is the absorption or attenuation length, being the distance lv into the atmosphere when the probability that the photon has not been absorbed has dropped to 1/e≈1/3: l_v is also called the mean free path because it equals the mean distance travelled by a photon before being stopped. Mathematically, I_ν +(0) Q_ν(Z,0) is the probability of finding the photon at height Z into the atmosphere.

To explore this equation’s implications, suppose a photon close to the centre of the absorption band, between 650–690 cm^-1, is emitted upwards at the surface of the Earth. The CO₂ concentration is assumed to be [C] = 400 ppm. How high will it travel before it is absorbed? The absorption length is l₀ = 1/n₀σ₀ = 2.65m – not very far at all! In fact, the bottom of the troposphere might be seen as an impenetrable wall of CO₂.

Clearly, the probability of absorption is different for IR radiation at wavenumbers towards the edges of the band, below 580 or above 760 cm^-1, where σ is much lower, so the mean free path is 100s of metres to a kilometre. These photons make their way to a substantial height. The density of CO₂ reduces at higher altitudes, thereby increasing the probability of them travelling even higher before absorption. Radiation at these wavenumbers is most sensitive to changes in the atmospheric CO₂ level. An increased CO₂ concentration yields a reduced absorption length.

Transfer with Absorption and Emission

This discussion disregarded much of the real physics of the transfer solution: to avoid being continuously heated, the atmosphere must emit radiation, as taken into account by the second term of the solution. The term is a ‘source term’ for generating photons, which acts continuously at every height above Earth. Every upward-going radiation at some height Z (first term in equation (1)) according to Kirchhoff’s law will be the source for new radiation with local emissivity equal to local absorptivity, half of which will radiate downwards. The rest will go upwards, and this effect is included in the source term in the radiative transfer equation (1).

The complex form of Planck’s formula does not allow a straightforward analytical solution of the transfer solution, but we can calculate the integral over height numerically for every wavenumber to the altitude of top of troposphere (TOT) at 11 km. Doing so for θ = 0, we find the intensity curve shown in yellow in Figure 4. If we disregard emission and only include absorption, we get the intensity curve display in red.

In an atmosphere with emission equal to absorption for every wavenumber, the model shows that parts of Earth’s blackbody radiation in the presence of atmospheric CO₂ is allowed to escape to the TOT, thereby carrying thermal energy away from Earth and cooling it. However, what does not go up will have to go down to Earth, to be absorbed by the surface and converted to heat, followed by blackbody IR photon emission in accordance with an adjusted thermodynamic equilibrium.

Over the long term, for the Earth-atmosphere system to be in equilibrium, top of atmosphere emission must match the solar incoming radiation. In this article, we have analysed the one-way differential equation for radiative transfer upwards. There is, of course, also a one-way differential equation for radiative transfer of IR radiation downwards, which has opposite signs to the equation we have worked on.

Terrestrial Radiation Spectrum

Satellite measurements show the real spectrum above Earth. An example (Figure 5) is the radiation spectrum measured from a satellite over the Sahara in 1990. This spectrum is a combination of blackbody spectra for temperatures ranging from 220 to 320K for the day of measurement. The bottom of the dips in the curve indicate the effective temperature of the emission where photons are emitted not from the surface but a cooler atmospheric height. The bottom of the CO₂ band at 667 cm-1 emits at about the tropopause temperature of 215K. The spectrum over the IR atmospheric window has the appearance of a blackbody curve at around 320K surface temperature. In this window there is relatively little absorption of terrestrial thermal radiation by atmospheric gases.

To cite the data in publications

Hansel R A et al. (1994) IRIS/Nimbus-4 Level 1 Radiance Data V001, Greenbelt, MD, USA, Goddard Earth Sciences Data and Information Services Center (GES DISC), Accessed: [Data Access Date], https://disc.gsfc.nasa.gov/datacollection/IRISN4RAD_001.html

Acknowledgment

The authors have enjoyed many helpful discussions with Tore Karlsson. Thanks also to Ketil Kåsli for providing the Northern Lights photography.
