Deciphering Earth’s secrets

The vital role of fault symbols on geological maps

Faults on geolog­ical maps are far more than just lines; they are a critical form of communication, conveying essential infor­mation about the Earth’s subsurface structure and tectonic history. Central to this interpretive power are fault symbols, the short­hand of structural geology. These seemingly simple lines and annotations hold a wealth of information, and their accurate use is crucial for understanding our earth and making in­formed decisions about its resources and hazards.

Fault symbols provide a standardized visual lan­guage for geologists to communicate the charac­teristics and kinematics of faults, yet it is too com­mon to find maps with faults portrayed as simple lines. Different symbols are used to distinguish between normal faults where the hanging wall moves down relative to the footwall, reverse faults where the hanging wall moves up, strike-slip faults where movement is pri­marily horizontal, and in some instances, structural inversion.

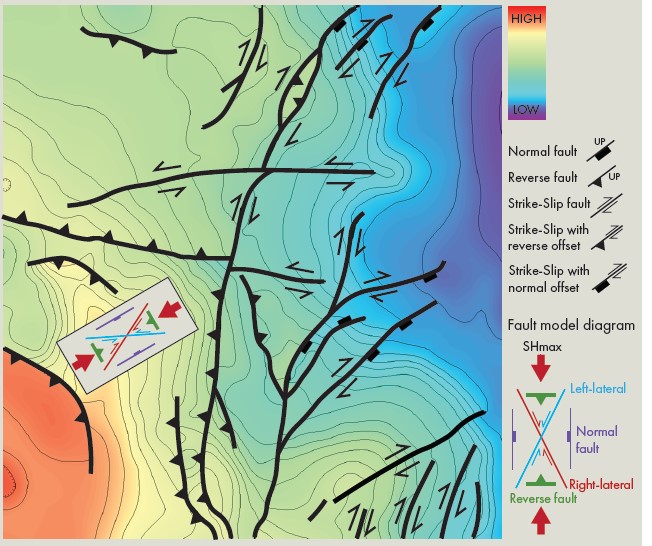

The figure shows a struc­ture map where symbols are used to illustrate the slip sense along faults. By under­standing the timing of fault movement, we can deci­pher the paleo – stresses and tectonic history. The fault model diagram shows ex­pected orientations of three different fault types under a northeast – southwest di­rected maximum horizontal stress (SHmax). Aligning the diagram with the as­sociated fault types on the map, helps us to decipher the paleo – stress field which has key implications to the tectonic history; a task that is only possible by reading fault symbols in the absence of other data. The absence of or inconsistencies in fault symbol conventions can lead to misinterpretations of geological structures, poten­tially impacting resource ex­ploration, civil engineering projects, and hazard mitiga­tion efforts.

But there is a disclaim­er. Geoscientists may not always have the data to confidently determine the type of fault they are look­ing at and if this is the case, then some grace can be offered. Adding to the frustration, some mapping software applications ei­ther don’t have an option for fault symbols, or they make the process of adding them very cumbersome. However, regardless of dif­ficulty, geoscientists should always do their best to pro­vide this crucial informa­tion to their maps. Fault symbols are the silent lan­guage of geological maps, conveying critical infor­mation about the dynamic forces that shape our plan­et. Their accurate and con­sistent use is essential for effective geological inter­pretation, resource explo­ration, hazard assessment, and a wide range of other applications. They are not merely decorative elements on a map; they are a funda­mental tool for deciphering the Earth’s secrets.
